端子台

H凹底端子台
底座:底座加高1.2-2.5mm
胶壳:尼龙66工程塑料 ,UL 94V-2、94V-0等阻燃等级
温度:110℃,150℃,850℃
线座:铜合金,与锌合金(镀镍)或带不锈钢弹片
弹片:不锈钢材质
螺线:碳钢线,镀锌
剥线长度:230/PA8约5.0mm 500/PA10约6.5mm
                 830/PA12约7mm  PA14约9mm
                 PA16约9mm   PA18约11.5mm
接线排数:1-12排 可按要求分切
用途:适用于各种电器产品家庭配线接线器材,
          耐用且绝缘性能好,可重复使用





尺寸规格:
带弹片
Without
shrapnel

带弹片
With
shrapnel


Amp

适用电线 / Wire Range
螺丝
Screw

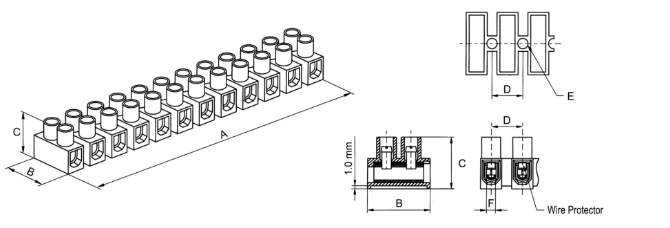

尺寸 / Dimensions (mm)
包装单位
Packing

Cross-Sec
(Cu,AWG)
A B C D E F
230
230WP
17.5
1.5mm2
22-12 AWG
M2.6×5
93.50
17.70
15.50
8.00
2.90
2.8±0.1
50Pcs/Bag
500Pcs/Ctn
PA8
PA8DS
17.5
1.5mm2
22-12 AWG
M2.6×5
96.2
17.00
14.50
8.00
2.90
2.8±0.1
50Pcs/Bag
500Pcs/Ctn
500
500WP
24
2.5mm2
22-10 AWG
14-12 AWG
M3.0×6
116.5
16.50
16.50
10.00
3.60
3.4±0.1
50Pcs/Bag
500Pcs/Ctn
PA10
PA10DS
24
2.5mm2
22-10 AWG
14-12 AWG
M3.0×6
116.5
20.20
16.80
10.00
3.60
3.4±0.1
50Pcs/Bag
500Pcs/Ctn
PA12
PA12DS
41.0
6.0mm2
22-10 AWG
M3.5×7
141.0
23.80
19.00
12.00
3.90
4.2±0.1
25Pcs/Bag
250Pcs/Ctn
PA14
PA14DS
57.0
10.0mm2
20-8 AWG
M4.0×9
158.0
25.60
25.20
13.50
4.40
5.0±0.1
25Pcs/Bag
250Pcs/Ctn
PA16
PA16DS
76.0
16mm2
14-6 AWG
M4.0×9
170.0
28.10
23.00
14.50
4.20
6.0±0.1
10Pcs/Bag
200Pcs/Ctn
PA18
PA18DS
101.0
25mm2
12-4 AWG
M5.0×11
194.0
37.00
28.70
16.50
4.20
7.5±0.1
10Pcs/Bag
100Pcs/Ctn
